Mini Electric Excavator

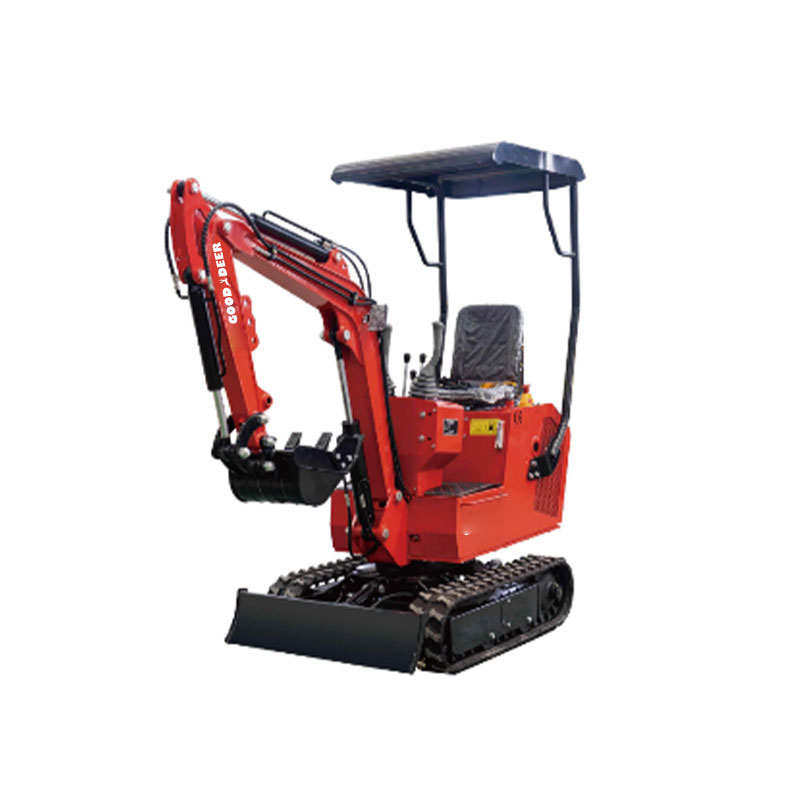

Mini Electric Excavator is an electric-driven small excavation equipment designed for small spaces and efficient operations. Compared with traditional internal combustion engine-driven excavators, it has the characteristics of lower noise, better environmental protection, and easier operation. It is suitable for scenes with high requirements for working space and environment, such as urban construction, landscaping, and underground pipeline construction. In the process of urban construction, it is often necessary to build infrastructure in narrow streets and around buildings. For example, the laying of underground pipelines, power cables, and drainage systems all require efficient working tools. Due to its small size, the Mini Electric Excavator can easily travel through these small spaces and complete tasks such as deep excavation and grooving. Mini Electric Excavator also plays an important role in bridge and tunnel construction. Since these construction projects are usually carried out in narrow and complex environments, the Mini Electric Excavator can perform precise excavation operations in narrow passages with its efficient hydraulic system and adjustable working range.

  • Mini Electric Excavator
  • Mini Electric Excavator

Product Description

Category Details
Model HT-10D
Weight 1000kg
Digging bucket capacity 0.025 cbm/120kg
Bucket width 380mm
Engine KOOP 192F
Optional Engine BRIGGS & STRATTON(10.1kw)
Bore stroke Single cylinder, fan-cooled
Rated power 7kw/3000r/min
Displacement 6.8ml/r
Travel speed 1.5km/h
Overall dimension (L×W×H) 2775×930×2219 mm
Wheelbase 910 mm
Total length of track 1230mm
Platform ground clearance 380 mm
Platform back turning radius 784 mm
Chassis width 896 mm
Track width 180 mm
Chassis ground clearance 132 mm
Track height 320 mm
Max. Digging depth 1750 mm
Max. Vertical digging depth 1375 mm
Max. Digging height 2610 mm
Max. Dumping height 1850 mm
Max. Digging radius on ground 2850 mm
Min. Rotation radius 1330 mm
Max. Upgrade height of bulldozer blade 345 mm
Max. Digging depth of bulldozer blade 255 mm
