| Category | Details |

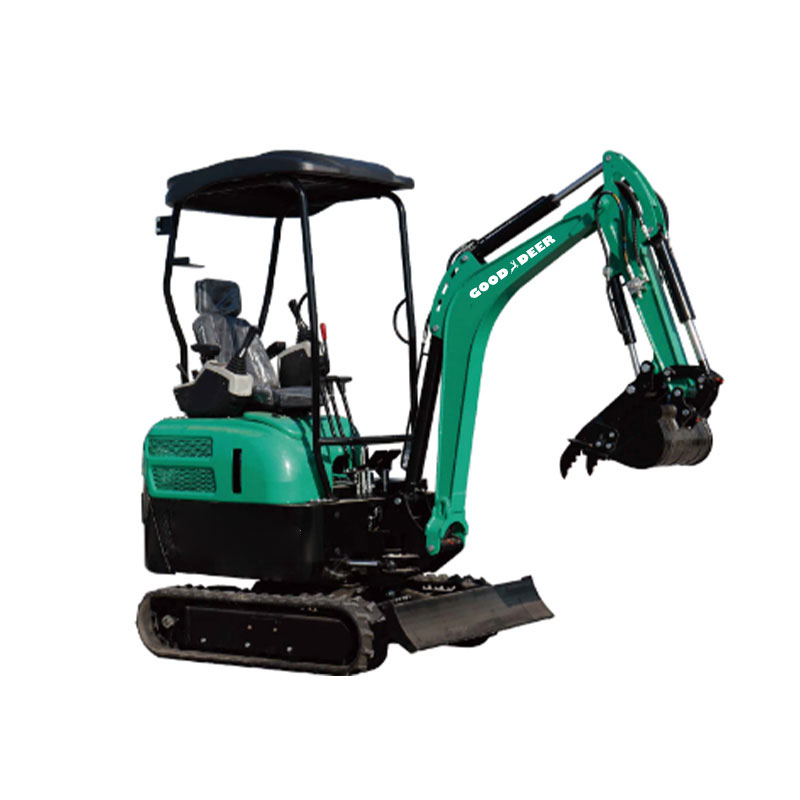

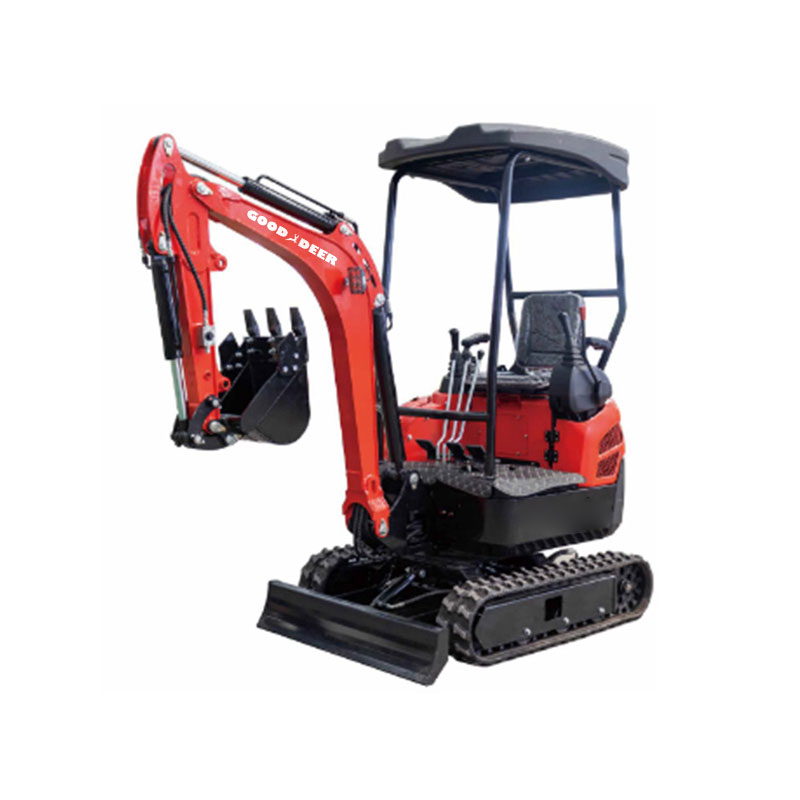

| Model | HT16 |
| Emission Standard | Tier 5/ Stage V |
| Engine | Kubota D722 |
| Power/Rotation speed | 10.2kw(15HP)/2500rpm |
| Number of cylinders | 3 |
| Maximum Travel speed | 4km/h |
| Standard Bucket capacity | 0.025m³ |
| Swing speed | 9 rpm |
| Max. Grade ability | 35° |
| Maximum Bucket digging force | 18KN |
| Maximum Arm digging force | 11KN |
| Hydraulic system pressure | 18.2Mpa |
| Machine weight | 1350kg |
| Overall dimension (LWH) | 2450mm940mm2150mm |
| Chassis width | 1000mm |
| Axle base(Track length on ground) | 1300mm |
| Track width | 200mm |
| Min.Ground clearance | 380mm |
| Maximum Digging height | 2640mm |
| Maximum Dumping height | 2100mm |
| Maximum Digging depth | 1800mm |
| Maximum Vertical digging depth | 2230mm |
| Maximum Digging radius | 2350mm |
| Minimum swing radius | 1190mm |
