Mini Excavator

Compact Crawler Excavators

Mini Excavators benefit from their compact size, typically weighing between 1- 8 tons, with a small volume that is easy to transport and operate. They have functions such as excavation, loading, and leveling, making them ideal equipment for earthwork applications in rural areas.

  • Compact Crawler Excavators
  • Compact Crawler Excavators
  • Compact Crawler Excavators
  • Compact Crawler Excavators

Product Description

Category Details

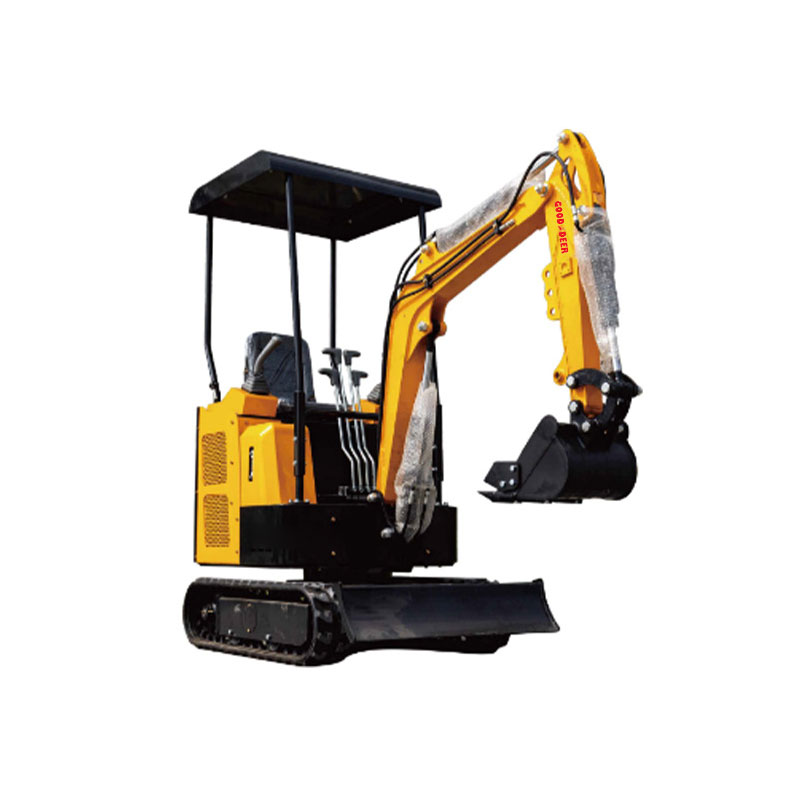

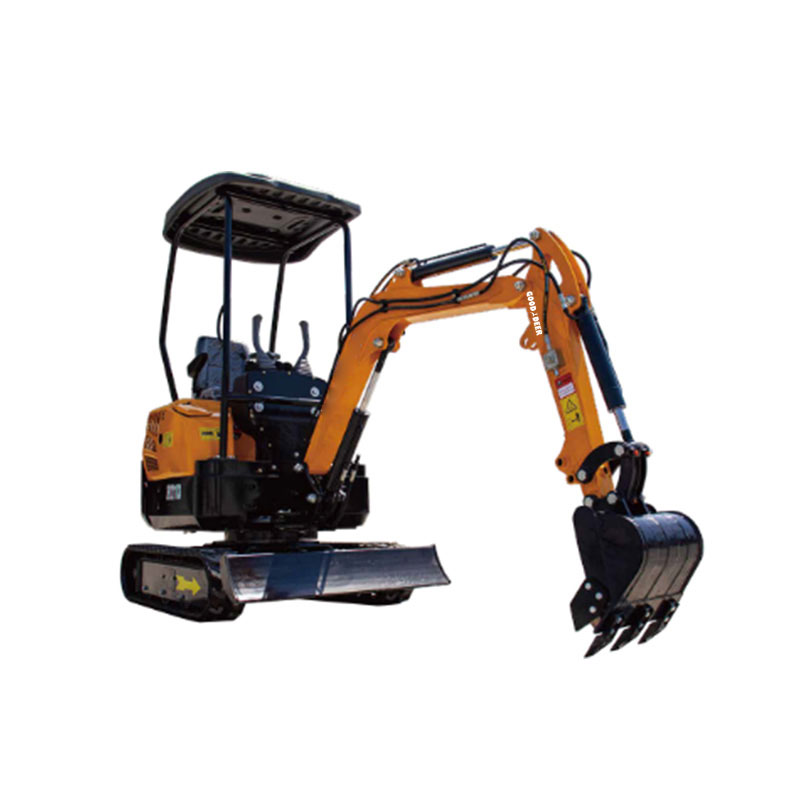

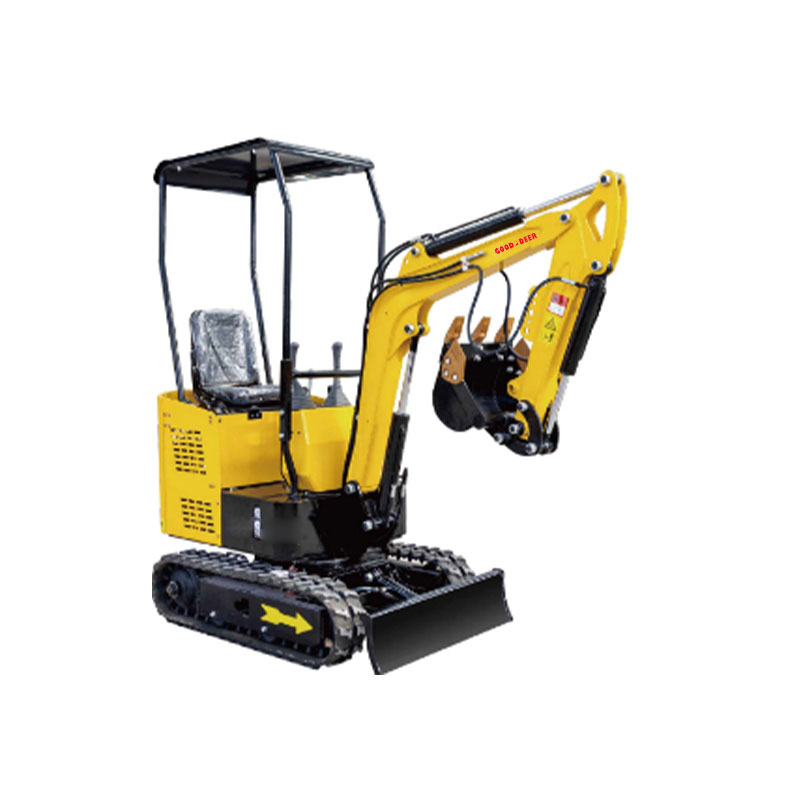

Model HT-10C
Weight 1000kg
Digging bucket capacity 0.025 cbm/120kg
Bucket width 380mm
Engine KOOP(192F)
Optional Engine BRIGGS & STRATTON
Bore stroke Single cylinder, fan-cooled
Rated power 7kw/3000r/min
Displacement 6.8ml/r
Travel speed 1.5km/h
Overall dimension (L×W×H) 2900×900/930×2180 mm
Wheelbase 910 mm
Total length of track 1230mm
Platform ground clearance 380 mm
Platform back turning radius 784 mm
Chassis width 896 mm
Track width 180 mm
Chassis ground clearance 132 mm
Track height 320 mm
Max. Digging depth 1750 mm
Max. Vertical digging depth 1550 mm
Max. Digging height 2610 mm
Max. Dumping height 1850 mm
Max. Digging radius on the ground 3050 mm
Min. Rotation radius 1330 mm
Max. Upgrade the height of the bulldozer blade 345 mm
Max. Digging depth of the bulldozer blade 255 mm
