Compact Movable Screw Air Compressor Suppliers
Home / Products / Air Compressor / Screw Air Compressor / Diesel Engine Drive Screw Air Compressor / Compact Movable Screw Air Compressor
  • Compact Movable Screw Air Compressor
  • Compact Movable Screw Air Compressor
Diesel Engine Drive Screw Air Compressor

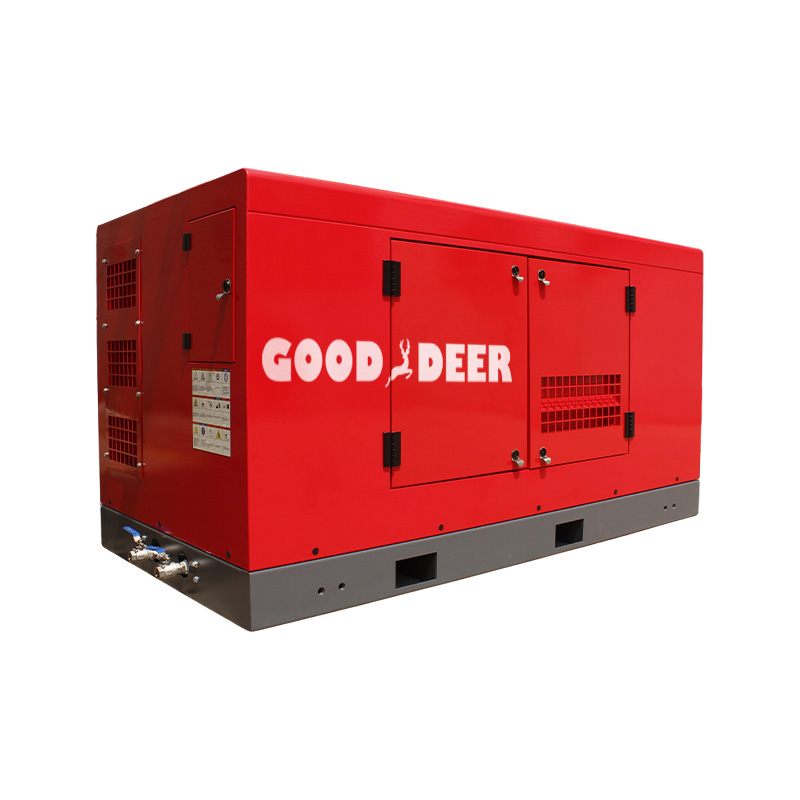

Compact Movable Screw Air Compressor

Diesel driven screw air compressor is an air compression equipment that uses diesel engine as the power source and combines twin-screw compression technology. It is designed specifically for non-power supply, high power demand, or field operation scenarios, providing stable and high-output compressed air. GOODDEER adopts a lightweight design, an independent compressor and diesel engine intake, an optional diesel engine, easy operation, and versatility. Make the product popular among a large number of users in the market.

Core Structure and Composition
• Power unit:
Diesel engine: Provides high torque power, suitable for heavy loads and long-term operation (common power range 30-500 kW).
Fuel system: fuel tank, high-pressure fuel injection pump, filter (requiring regular maintenance).
• Compression unit:
Screw host: precise meshing of male and female rotors, compressed air (divided into oil injection and oil-free types).
Oil gas separation system (fuel injection model): Separate lubricating oil from compressed air and recycle it.
• Auxiliary system:
Cooling system: air-cooled or water-cooled, controls the temperature of the main engine and the diesel engine.
Control system: pressure regulation, fault alarm, automatic start stop.
O Gas storage tank (optional): Buffer pressure fluctuations and provide a stable gas supply.
Silencing device: reduces the operating noise of diesel engines (usually 75-95 dB)
Diesel driven screw air compressors are the core power equipment for heavy industry and field operations. With high reliability, strong environmental adaptability, and high power output, they have become the preferred choice in mining, infrastructure, and other fields. When selecting, special attention should be paid to exhaust volume, pressure requirements, fuel efficiency, and emission compliance, while taking into account maintenance costs and a comprehensive evaluation of the operating environment. Suitable for working conditions that require long-term high-intensity gas supply and no stable power support, it is the ultimate solution for mobile compressed air systems.

  • Compact Movable Screw Air Compressor
  • Compact Movable Screw Air Compressor
PREV：Portable Motorized Screw Compressor   |    NEXT：No next article

+ Contact us

Product Description

GD68/7 GD83/7 GD101/7 GD161/10
Air Flow m³/min 3.5 5 6.05 10
Operating Pressure bar 7 7 7 10
Tank Capacity L 45 70 100 140
Sound Level Db(A) 75±3 75±3 75±3 80±3
Max Ambient Temperature 50 50 50 50
Number of Stages 1 1 1 1
Diesel Engine Yanmar Weichai Weichai Cummins
Engine Model 3TNW88 WP3.2G50E347 WP3.2G61E17 QSB3.9 - C
Engine Rated Power KW 26.8 36.8 45 97
Speed at Full Load rpm 3000 2500 2500 2200
Speed at Min Load rpm 1800 1750 1750 1500
Dimensions mm

2853*1272*1092

3230*1440*1425

3300*1570*1560

3800*1900*1900
Number of Tires 2 2 2 3
Weight KG 880 1200 1550 1820
Number of Air Outlet inches 2*G3/4 G1,G3/4 G1 - 1/4,G1 -
